Specifications

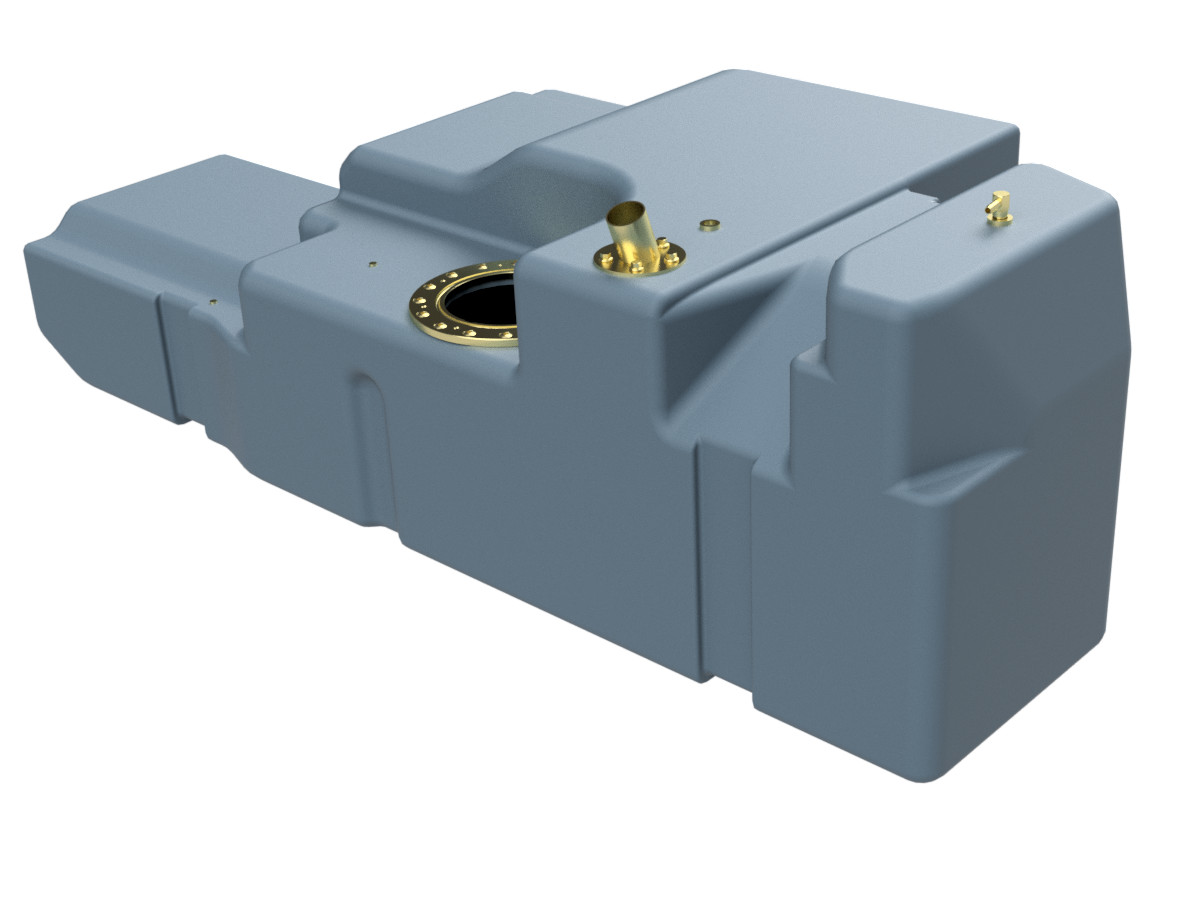

Part Number: PT-ISD20
Tank type: POLY REPLACEMENT
Capacity: 140L
Filler Point: STANDARD
Fuel Supply Method: STANDARD
Tank Location: REPLACES VEHICLES 76LT OEM TANK
Fitting Time: 1.75 HOURS
Modifications: NONE REQUIRED
Key Features of a Brown Davis Replacement Fuel Tank
- Tapered approach angle to reduce frontal impact and improve ramp over
clearance - Longitudinal and lateral baffling system to prevent fuel slosh and to
strengthen tank structure - Gusseted brackets with double thickness pads to spread tank mounting loads
- Fuel pump sender flange designed to re-use the vehicle’s original equipment
- Swirl pot designed to carrel fuel around the pick-up point
- Roll over check valve and expansion box for fuel expansion and venting
- Fast fill breather for rapid filling and to reduce bowser shut off
- Filler tube, connects to vehicles original filling point
- Cushion clamps to retain fuel lines to prevent damage and kinking
- Magnetic drain plug, horizontal and flush mounted to prevent damage
Replacement System

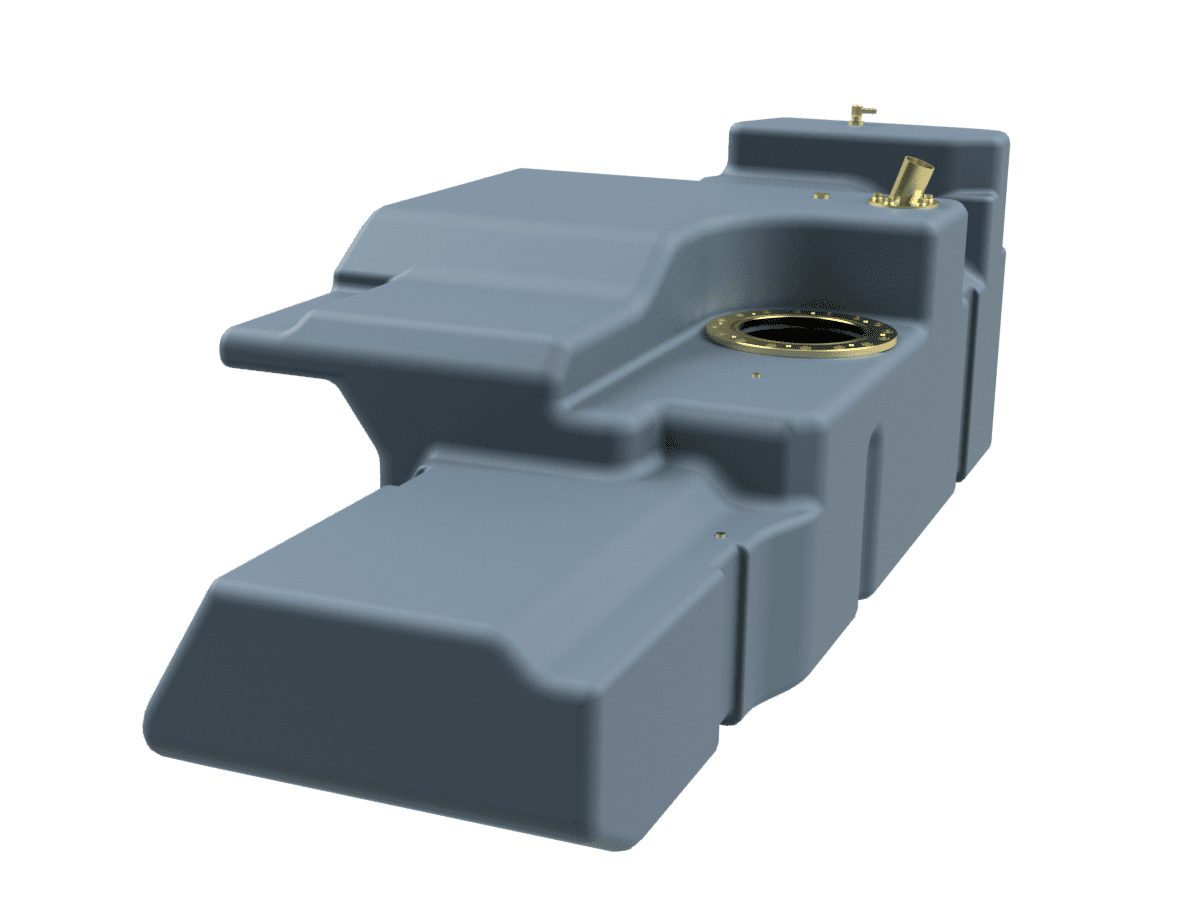

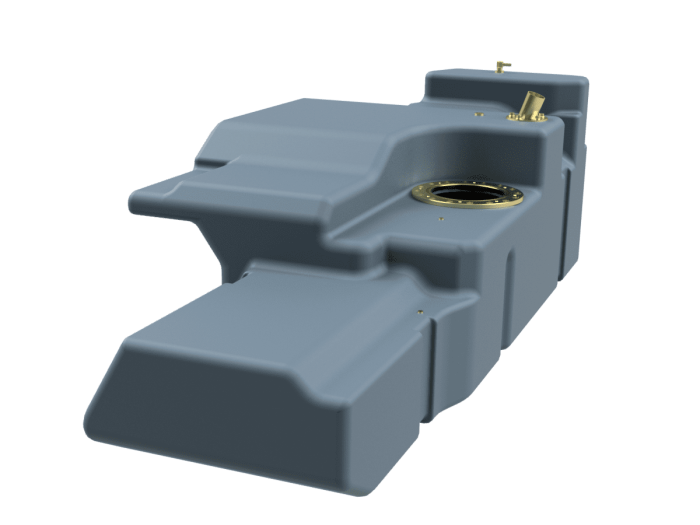

Replacement Long range tanks are designed to replace the vehicle standard
fuel tank with an increased fuel capacity. The tank is a simple bolt in
solution to increase your vehicles driving range. On the current model dual
cab ute range the fuel capacity increase is around 100%. Replacement fuel
tanks are designed to minimise vehicle modifications utilising the standard
fuel gauge, pump assembly and fill point for a simple installation. All
Brown Davis fuel tanks come with a flush mounted drain plug for easy
draining in the event of contaminated fuel. The tanks come with all parts
and hardware supplied.
