Chief Products WL74 Roof Rack (Apex) for 2022+ Grand Cherokee WL 2-Row
Chief Products WL74 Roof Rack provides the pinnacle of performance for roof rack systems on the WK2 (Jeep Grand Cherokee, 2022-Current). It delivers industry-leading load ratings (150kg dynamic & 460kg static) and vehicle specific styling in a light-weight, low-profile design. Our Modular Roof Rack System provides an unrivalled amount of configurability. Customers can build the roof rack they want, and easily reconfigure it whenever their needs change. One configuration for around town (surfing/kayaking/mountain biking). Then easily change to another configuration for camping/expedition/overlanding (maximum gear, roof top tent, etc.). One roof rack; that can easily adapt to your needs.
We’ve utilised the latest manufacturing techniques and aircraft-grade aluminium alloys to keep the overall installed weight low and accomplish a degree of fit-and-finish you have to see in person to truly appreciate. The smooth top surface, low profile design and hidden fasteners have enabled us to deliver an extremely aerodynamic roof rack. Amazingly, even after thousands of kilometres of off-road driving, you won’t hear any creaking or rattling. Best of all, we made it extremely easy to mount accessories – whether you’re using t-nuts that slide the entire length of the Planks; or our industry-leading Tie-Down Plates that easily slide and clamp between the Planks. If you’re looking for a top-quality place to carry extra gear on your next adventure, there’s no doubt we’ve got you covered.
Features:
- Modular Design (Mix-And-Match Components, buy one of the versions listed below or build your own! **Make sure you click to enlarge 4th slide — Animated GIF!)
- Groundbreaking Configurability (Easily Move & Change Components)
- High-Strength (Industry-Leading Load Ratings)
- Top-Quality Materials (Aircraft-Grade Aluminium Alloys + High-Strength Steel)
- Industry-Leading Durability (High-Strength + Corrosion Protection + UV Stable Coatings)
- Industry-Leading Corrosion Protection (Special Coatings, Materials & Hardware)
- Easily Mount Accessories (Adjustable Planks, T-Nuts & Tie-Down Plates)
- Premium Accessories (Top-Quality, Innovative & 3rd Party Compatibility)
- Vehicle Specific Styling (Mounting Rails & Aero)
- Stealth (Low Wind Noise + No Creaking/Rattling + Unobstructed Sunroof + Stealth Air Dam)
- Top Quality Fasteners (Blackened Stainless or High-Tensile + Wedge-Lock Washers)
- Fit & Finish (Precision Manufacturing + Unrivalled QC Processes)
- Easy Installation (Difficulty = 2/10)
Specifications:
- 100 kg (220.46 lbs) Dynamic Load Rating (with 2x Half-Planks)
- 300 kg (661.39 lbs) Static Load Rating (with 2x Half-Planks)
- 150 kg (330.69 lbs) Dynamic Load Rating (with 2+ Planks)
- 460 kg (1014.13 lbs) Static Load Rating (with 2+ Planks)
- 86 mm (3.39 inches) Overall Height (Above Roof Line)
- 25 mm (0.98 inches) Plank Thickness
- 28.34 mm (1.115 inches) Platform Thickness (Fully Assembled)
- 1740 mm (68.50 inches) Full Platform Length (Fully Assembled)
- 1246 mm (49.06 inches) Full Platform Width (Fully Assembled)
- 9.4 kg (20.72 lbs) Installed Weight –> Bare Bones
- 9.4 kg (20.72 lbs) Installed Weight –> Roof Top Text [100-300 kg]
- 13.3 kg (29.32 lbs) Installed Weight –> Roof Top Text [150-600 kg]
- 17.2 kg (37.92 lbs) Installed Weight –> Overland
- 26.9 kg (59.30 lbs) Installed Weight –> Safari
Bare Bones:
- WL74 Roof Rack (Mounting Rails)
- 1 Roof Rack (2x Half-Planks) [45.12 Inches]
- 1 Roof Rack (4x Half-Plank End-Caps)
Roof Top Tent (220-660lbs)
- WL74 Roof Rack (Mounting Rails)
- Roof Rack (2x Half-Planks) [45.12 Inches]
- Roof Rack (4x Half-Plank End-Caps)
Roof Top Tent (330-1014lbs)
- WL74 Roof Rack (Mounting Rails)
- Roof Rack (2x Planks) [45.12 Inches]
- Roof Rack (4x Plank End-Caps)
- Roof Rack (Roof Top Tent Kit)
Overland
- WL74 Roof Rack (Mounting Rails)
- Roof Rack (2x Planks) [45.12 Inches]
- Roof Rack (4x Plank End-Caps)
- Roof Rack (2x Half-Planks) [45.12 Inches]
- Roof Rack (4x Half-Plank End-Caps)

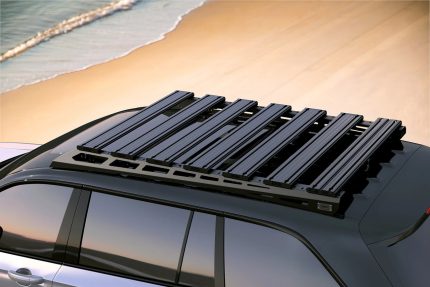

Safari
- WL74 Roof Rack (Mounting Rails)
- x3 Roof Rack (2x Planks) [45.12 Inches]
- x3 Roof Rack (4x Plank End-Caps)
- Roof Rack (2x Half-Planks) [45.12 Inches]
- Roof Rack (4x Half-Plank End-Caps)

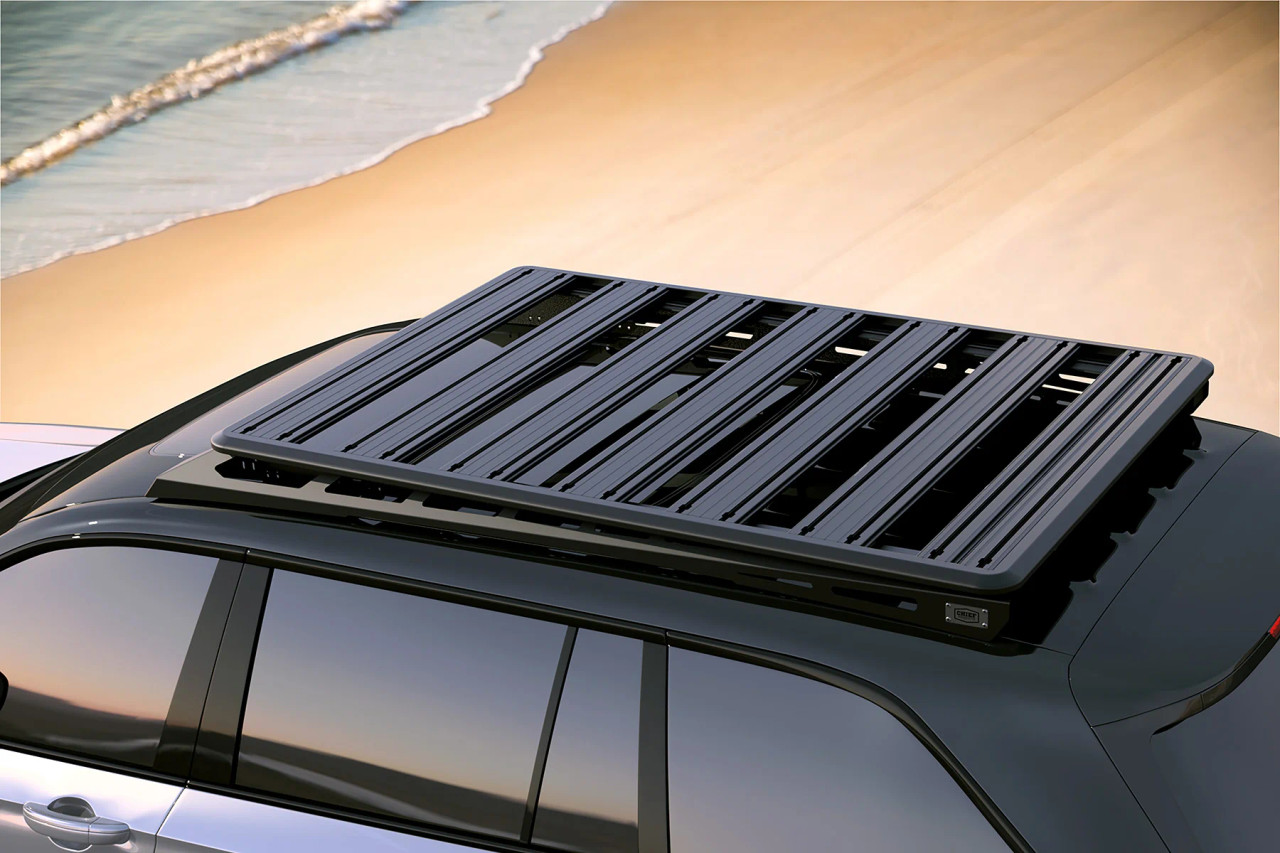

Apex
- WL74 Roof Rack (Mounting Rails)
- x3 Roof Rack (2x Planks) [45.12 Inches]
- Roof Rack (2x Half-Planks) [45.12 Inches]
- Roof Rack (Platform Frame) [7 Plank]
